STN Type 192x64 resolution lcd display yellow+green color graphic 19264 dots LCD module

Product Categories
Shenzhen Ok Smart-Lcm Photoelectric Co., Ltd.
Contact Now

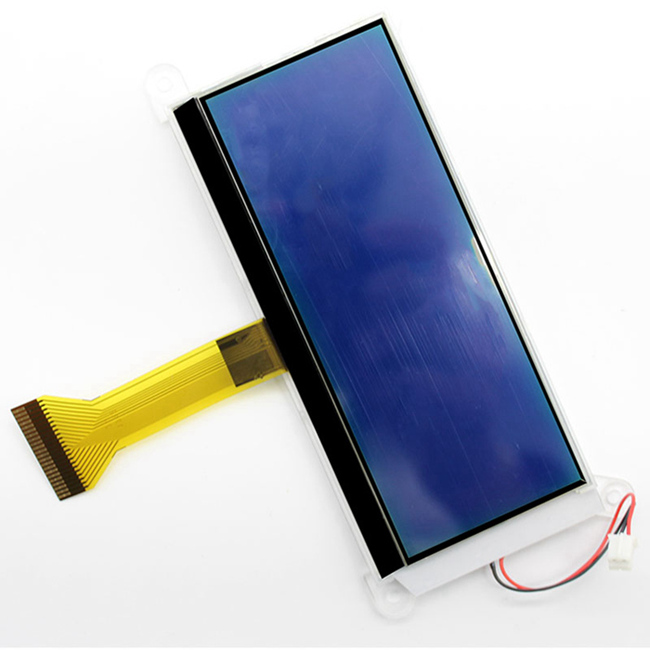

STN Type 192x64 resolution lcd display yellow+green color graphic 19264 dots LCD module

  • 1
  • 2

Brand Name : OKSMART

Model Number : OKM19264-07

Certification : SGS

Place of Origin : Shenzhen China

MOQ : 3000

Price : usd 2.7- 3.8 piece

Payment Terms : T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 1- 30 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.

LCD driving voltage (VOP) : 10.0V .

Module size : 50.0mm(L)*40.0mm(W)*4.1mm(H)

Viewing area : 47.0mm(L)*30.0mm(W)

Dot pitch : 0.272mm(L)*0.255mm(W)

Contact Now

STN Type 192x64 resolution lcd display yellow+green color graphic 19264 dots LCD module

FSTN monochrome graphic lcd module19264 graphic popular 19264 graphic lcd ,oksmart advantage :we have our own lcd glass line ,customizabble dimention and backlight and also connector .

The OKM19264-07 display has an integrated microchip that manages this type of communication, and then all of the input and output information are limited to only two PINs (excluding power supply)

OKM19264-07
Pin no Symbol Function
1 VG LCDdrivingvoltageforsegmentcircuits
2 VO LCDdrivingvoltageforcommoncircuitsatnegativeframe
3 XVO LCDdrivingvoltageforcommoncircuitsatpositiveframe.
4 C1+ DC/DCvoltageconverter.ConnectacapacitorbetweenCA1P andCA1N
5 C1-
6 VDD Supplyvoltageforlogiccircuit +3.3V
7 VSS Ground
8 IF1
9 IF0
10 /CS Thisisthechip selectsignal.When CS= “L”, thenthechipselectbecomesactive,anddata/commandI/Ois enabled
11 AO COMMAND andDATA registerselectsignal
12 ERD In6800mode,it’senablecontrolpin.In8080mode,when /RD=0,readisactive.
13 RWR In6800mode,it’sRead/Writecontrolpin.In8080mode,when /WR=0,writeisactive.
14 /RST When/RET=“L”,thesettingsareinitialized
15 D0~D7 Displaydatasignal
