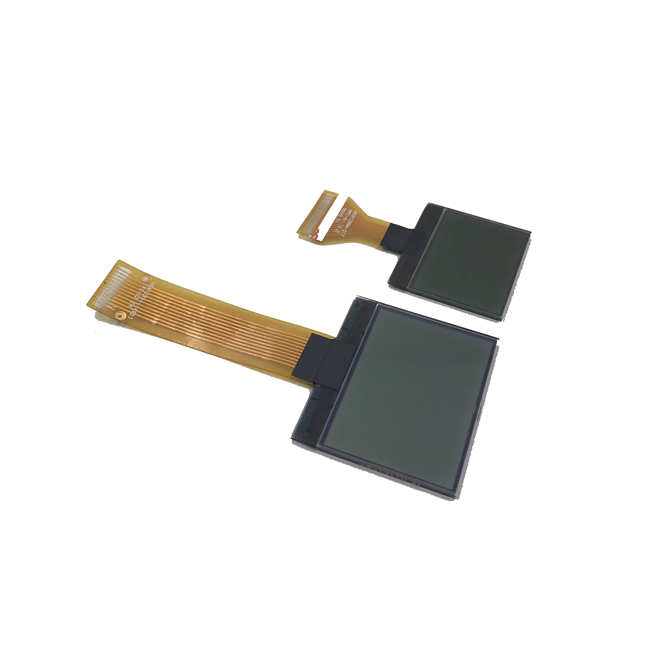

LCM12864J Graphics Dot Matrix Lcd Display Module Yellow Green Backlight

  • 1
  • 2

Brand Name : OKSMART

Model Number : OKM12864-234

Certification : SGS

Place of Origin : Shenzhen China

MOQ : 1000

Price : USD 1.0-1.9 per piece

Payment Terms : Trade Assurance, L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 90000 pieces per month

Delivery Time : 30-45 working days

Packaging Details : Kraft box / white box to a carton or customized packing

Other name : display module yellow green screen

Power supply voltage for logic : VDD -0.3~+3.6 V

LCD Power supply voltage : V0-XV0 -0.3~16 V

LCD Power driving voltage : VG,VM -0.3~VDD V

Operating temperature Topr : -20~+70 °C

Storage temperature Tstg : -30~+80 °C

Contact Now

LCM12864J LCD screen LCD12864 display module yellow green screen backlight

OKM12864-234 graphics dot-matrix liquid crystal display, with a variety of single-chip can complete English characters and graphics display.

OKM12864-234 can constitute a full Chinese human-computer interaction graphical interface, the module has a low power consumption, rich display content and other features and widely used.

OKM12864-234 is the use of liquid crystal after processing can change the direction of light propagation, the current to stimulate the liquid crystal molecules to generate points, lines, surface and backlight composition screen. Its display resolution is 128×64.

OKM12864-234 has 4/8bit parallel (adaptation M6800 timing), 2 wire or 3 wire serial multiple interface.

OKM12864-234 provides compatible modules, using a compatible IC: ST7567.

OKM12864-234 provides different character colors, backlight colors and other display modules.

Module size:

42.0mm(L)*31.6mm(W)*3mm(H)

Viewing area:

 8.0mm(L)*24.3mm(W)
Dot pitch: 0.277mm(L)*0.35mm(W) Dot size: 0.257mm(L)*0.33mm(W)
Power supply voltage for logic: VDD -0.3~+3.6 V LCD Power supply voltage: V0-XV0 -0.3~16 V

LCM12864J Graphics Dot Matrix Lcd Display Module Yellow Green BacklightLCM12864J Graphics Dot Matrix Lcd Display Module Yellow Green Backlight
